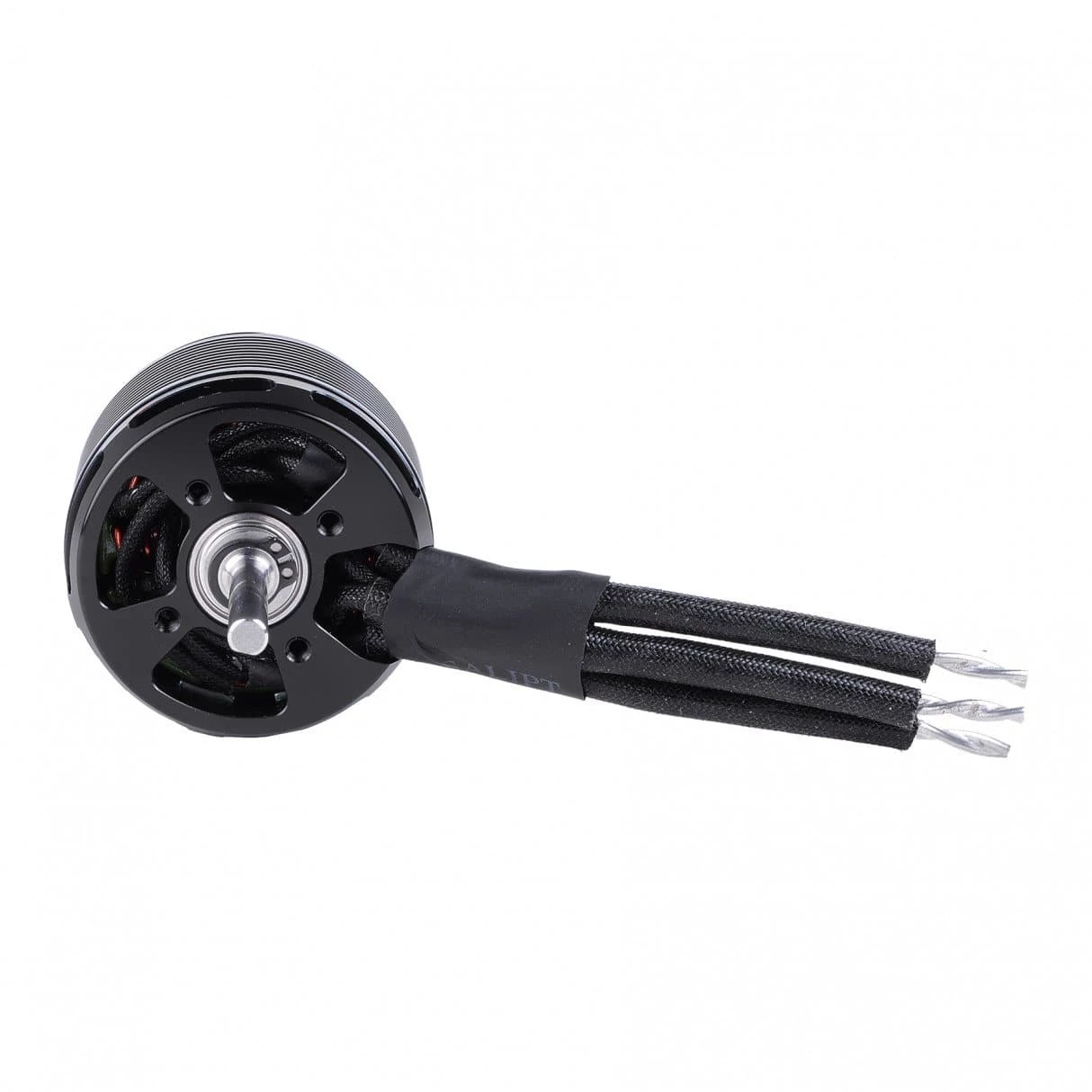

Egodrift Tengu 4025HT / 1190kV Motor (6×32)

EGODRIFT Tengu high-performance brushless motors for RC heli are the result of years of testing and development. The 4025HT comes with a kV rating of 1190kV for 6S LiPo batteries and is the perfect choice for your SAB Goblin Kraken 580 and other high-kv-550mm sized helicopter model.

Like all models within the Tengu series, the top of the can features the iconic and heat-resistant EGODRIFT Stickerbomb design, to add the finishing touch to your 550 class heli build.

Each motor comes with mounting screws and an (optional) screw for additional securing of the bell.

Please note: Due to the modified base (see diagram) the 4025HS shaft kits will NOT fit the new 4025HT motors! The available 6x32mm shaft for the 4025HT will fit the Kraken 580.

SPECIFICATIONS
Manufacturer: EGODRIFT
Stator size: 4025
Motor configuration: 12N10P
Motor weight: Cool operating temperature
Base Colour: Black
Wire colour: Copper
Motor wire type: High temperature copper wire
Motor shaft: Hardened Steel
Shaft diameter: 6.0 mm
External shaft length (mm): 32 mm
LiPo cells: 6S
Motor kV: 1190 kV
Stator diameter: 40 mm
Stator height: 25 mm
Stator lamination: 0.15 mm (+)
Body Length: 52.5mm (2.07 inch)
Diameter: 49.6mm (1.95 inch)
Screw hole diameter: 3,0 mm
Motor hole pattern: 25mm, 30mm
Idle current: TBD
Maximum Current: TBD
Maximum Power: TBD
Internal resistance: TBD
Connection: Wire / Gold plated plugs

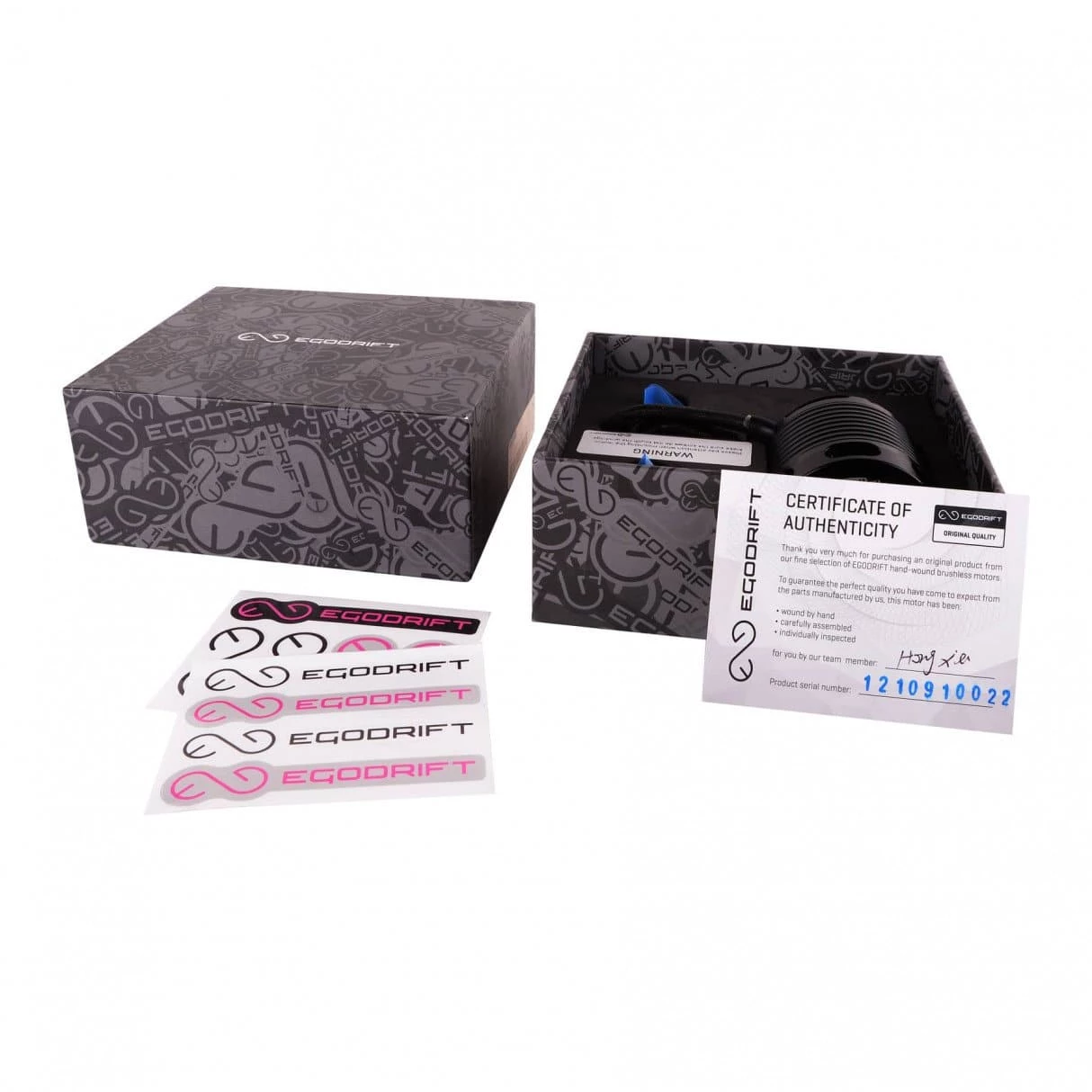

What’s in the box
1 x Tengu 4025HT / 1190kV Motor (6x32mm shaft)
3 x Gold Plated Connector, Male
3 x Gold Plated Connector, Female
4 x Mounting Screws
1x Bell securing screw
