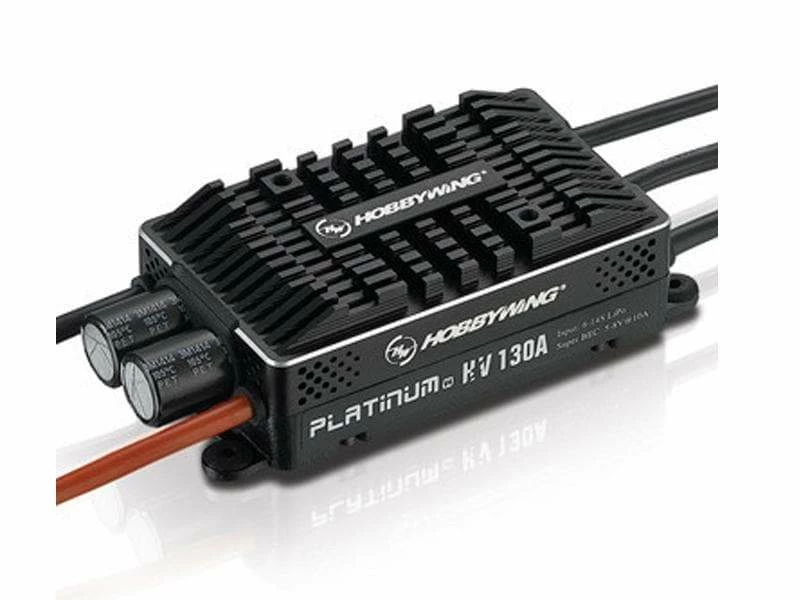

HobbyWing Platinum PRO V4 130A HV ESC (6S-14S)

Super Soft Start-up

Platinum V4 serial products allows the motor to start extremely smooth and avoids tail-drift
issues that helicopters experience. The start-up time is adjustable from 8 to 25 seconds,
this will definitely create a perfect starting point for every flight.

Excellent Motor Speed Governing

High-performance 32-bit processor with a running frequency of 72MHz combined with
advanced algorithm optimizes the speed governing. Together with the adjustable
governor parameters guarantee every pilot a precise control experience.

High Voltage Built-in BEC

The built-in switch mode BEC with an adjustable voltage range from 5V to 8V, a continuous current of over 10A and peak current of 25A can supply enough power for your servos to operate efficiently.

Setup, Program and Firmware update

A separate program port for connecting programmer on this ESC allows user to
•Program ESC,
•Check flight data include minimum voltage, maximum temperature, standardized RPM and speed curve
(in Heli Governing Store mode) of the flight parameters recorded by the ESC,
•Upgrade ESC firmware with a mutifunction LCD program box or a WiFi Module (need to be purchased separately) with Apple/Android phone App.

DEO Technology

The DEO (Driving Efficiency Optimization or so-called “Active Freewheeling”)
technology implemented in the ESC has multiple advantages.
•Rapider response to throttle change.
•Higher driving efficiency, longer flight time.
•Lower ESC temperature and a more reliable operation.

Model	Platinum 130A-HV V4 ESC
SKU	30209200
Application	550-600 Class Helicopter
Input Voltage	6S-14S Lipo
Cont./Peak Current (10s)	130A/160A
(Switch-mode) BEC	Switch Mode:5-8V,10A
Separate Programming Port	For connecting LCD Program Box/WIFI Express
Throttle Signal/BEC Output/RPM Signal Transmission Wire(s)	White Throttle Signal Wire/Red & Black and Red&Brown BEC Output Wires/Yellow RPM Signal Transmission Wire
Input Wires	Red-12AWG-150mm*1/Black-12AWG-150mm*1
Output Wires	Black-12AWG-100mm*3
Output connector	4.0mm Gold Connectors (Female)
Size	101.0×45.5×27.0mm
Weight	169g / 5.96oz

*Note: All the wire length above is the original length not the length you see from the outside.
