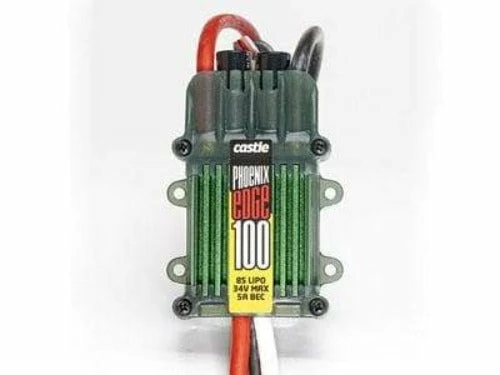

PHOENIX EDGE 100 (32V 100 AMP) BRUSHLESS ESC W/5A BEC

Original price was: $137.95.Current price is: $98.99.

SKU: AGVSA 3528782118989 Categories: Heli ESCs, Helicopter Electronics Tags: 480-520 Electronics, 50-100A, 8S, AmazonSeller, BF22 10, Castle-creation, Coupon promotion, Heli electronics, Heli_cate, Heli-escs, Helicopter Electronics, HW22 10, Labor22 10, New Year 2022

Product guarantee 100% satisfaction
Hassle-Free Payments
Nature-friendly materials, 100%.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Applications
Helis:	500 Class, 550 Class, or 600 Class (use external BEC or RX/servo power source; not included)
Fixed wing:	.40 – .90
Technical Specs
Input voltage:	MIN: 2S LiPo MAX: 8S LiPo
Max continuous amperage at full throttle:	100 amps*
BEC voltage (voltage regulator for powering radio and sevos):	User selectable choice from 5 to 8.4 volt output
BEC output amperage:	5 amp peak**
Size and Weight
Width:	2.0″ (50.8mm)
Length:	2.8″ (71.9mm)
Height:	0.9″ (23.2mm)
Weight w/wires:	4.5 oz (126.6g)
Weight w/o wires:	2.6 oz (72.9g)
Miscellaneous
Programmability:	Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link USB adapter included in package) and freely downloadable Castle Link Windows software. Castle Field Link Programming Card (sold separately) compatible for select functions.
Connectors:	Battery and motor connectors sold separately
Tools needed for installation:	Soldering iron and solder to attach bullets to motor wires and battery connector to power wires.
