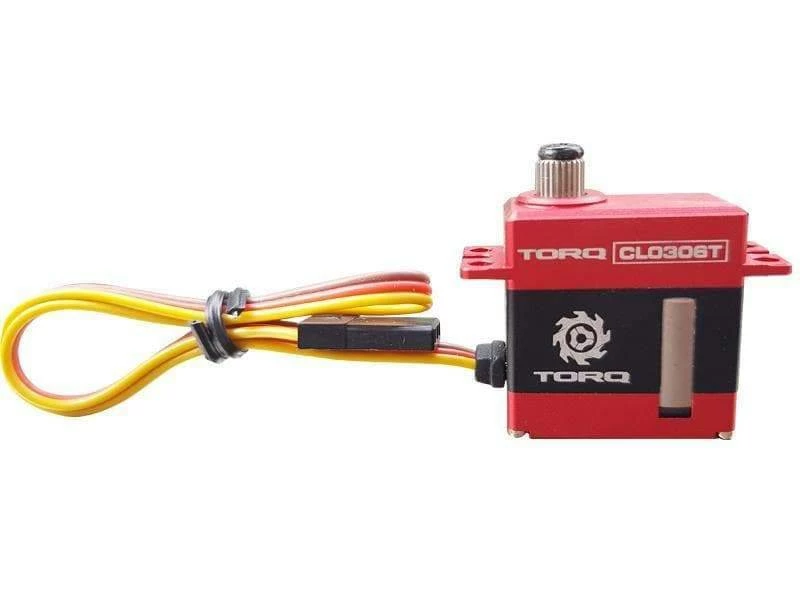

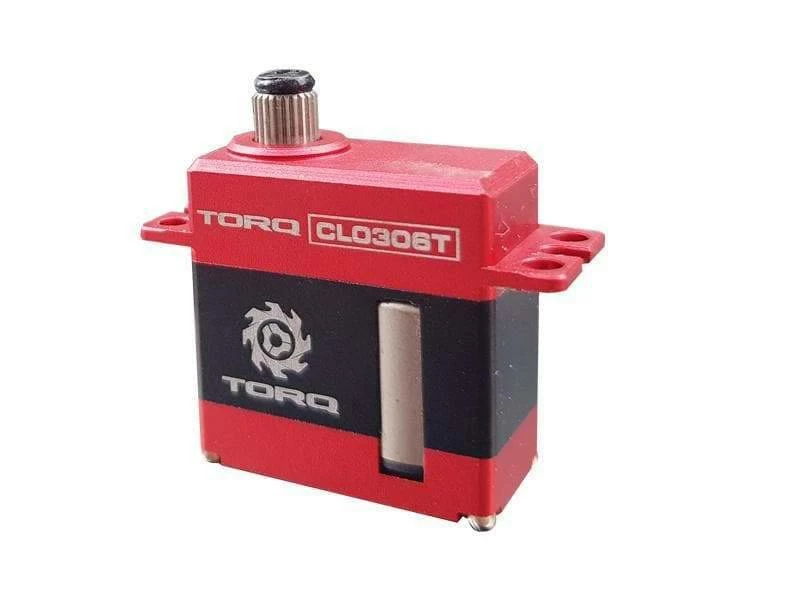

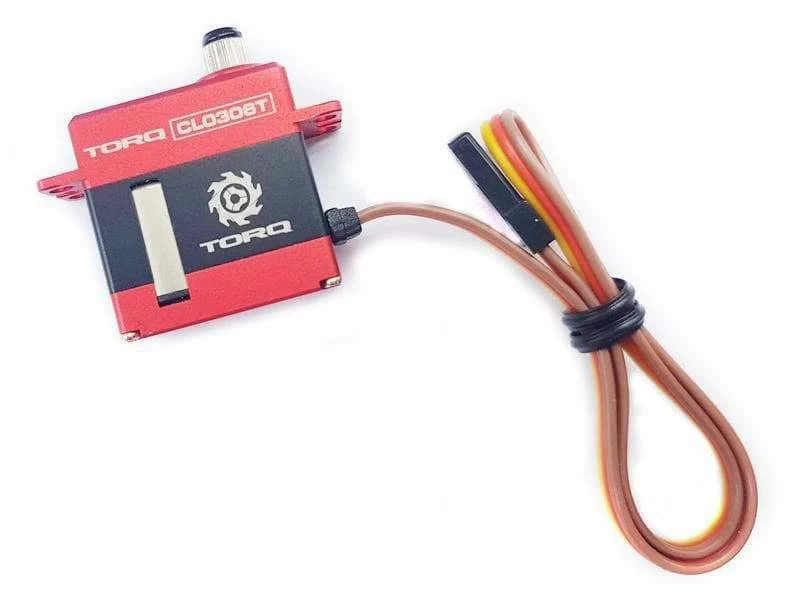

TORQ CL0306T Micro HV Rudder Helicopter Servo – Unworldly Precision & Control.

Explore new worlds of precision & control with the TORQ CL0306T Micro HV Rudder Helicopter Servo. Specifically designed for the intense demand of helicopter rudder control, the TORQ CL0306T has been optimized for incredible levels of precision and resolution, with massively rapid 0.04 transit speeds at 7.4V of power. This speed and precision equates to ultimate levels of rudder authority, providing crisp control under the harshest of 3D demands.

Encased within a aluminum 6061 heat dissipating CNC case, the TORQ CL0306T utilizes a 12mm exposed coreless motor for epic levels of high torque demand. Perfectly suited for an array of high performance micro helicopter applications, the CL0306T has been purposefully designed to thrive within the most hostile 3D flight regimes, offering superior levels of tactile control that can be seen and felt throughout the flight.

Designed to absorb up to 7.4V of power, the TORQ CL0306T Micro HV Rudder Helicopter Servo utilizes a dedicated 760us / 560Hz working frequency for the most agile level of response, and incorporates a steel gear train for maximum levels of abuse. Paired with a dual ball bearing layout for butter smooth operation, TORQ CL0306T Micro HV Rudder Helicopter Servo provides unparalleled levels of finite control, offering next level precision with every flight you take.

Step up to epic levels of high performance rudder capability with the TORQ CL0306T Micro HV Rudder Helicopter Servo. Micro sized, with massive levels of precision and control.

Features:– Dedicated Helicopter Rudder Servo
– Incredible Levels of Speed & Performance
– Ultra Precise, High Resolution Control
– Coreless Motor Design for Peak Torque Demand
– Fully Replaceable Steel Gear Train for Maximum Strength
– Excellent Thermal Dissipation via 6061 Aluminum Case
– 7.4V High Voltage Ready
– Optimized for High Demand Rudder Control
– Dual Ball Bearing Construction

Speed:0.04 sec / 60° @ 7.4V
0.06 sec / 60° @ 6.5V

Torque:3.60Kg.cm / 49.99 oz in. @ 7.4V
3.00Kg.cm / 41.66 oz. in @ 6.5V

Specifications:

Motor Type: 12mm Exposed Coreless Motor
Servo Arm Type: Futaba
Working Pulse Width / Frequency: 760us / 560Hz
Weight: 21g
Dimensions: 22.90mm x 12.27mm x 24.50mm (LxWxH)

Usage Note:
For helicopter rudder usage only. Please note that the TORQ CL0306T Micro HV Rudder Helicopter Servo servo must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
