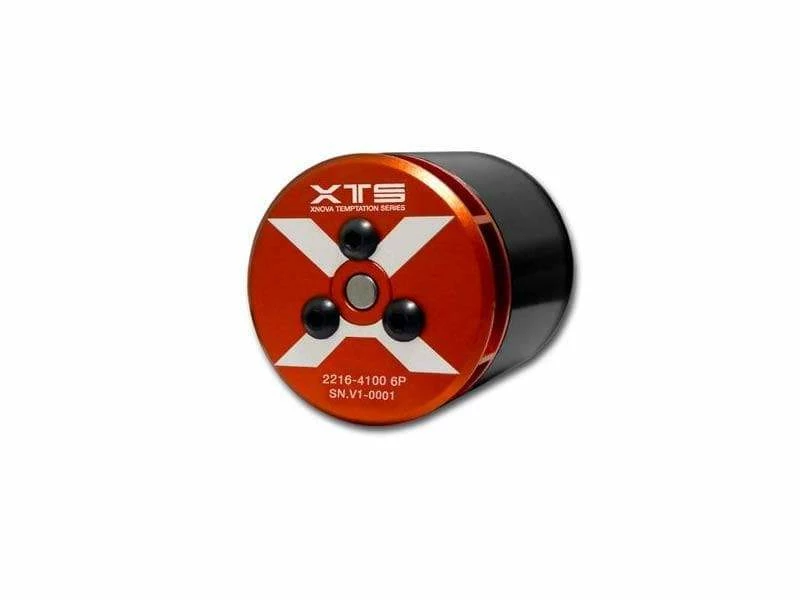

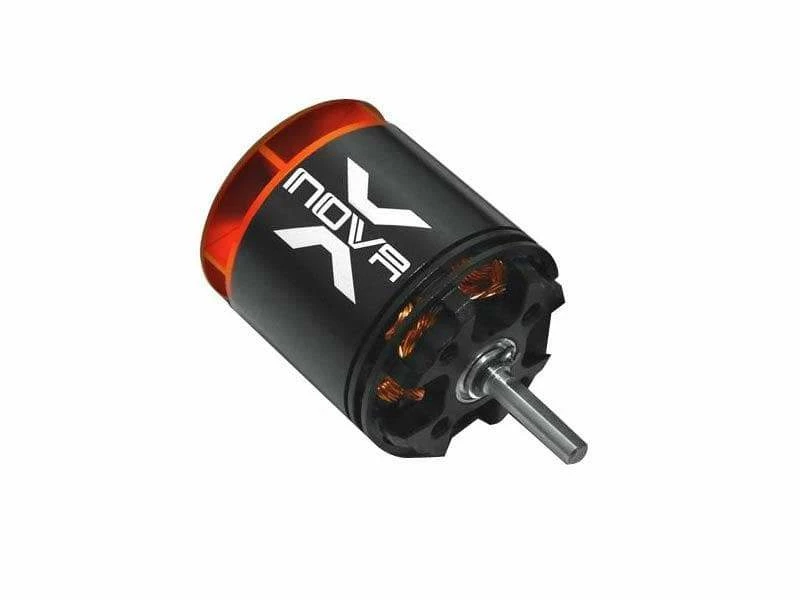

Xnova XTS 2216-4100kv 6P
Designed for extrem 3D , 220-285mm bladesize helicopter where highest power to weight ratio is important.
| Slots & Poles | 9n6p |
| Winding T | D |
| rpm/V | 4100 |
| Volt (V) | 10/ 15 |
| Io(A) | 4.2 / 5.8 |
| Rm (mohm) | 15 |
| Weight (without connector) (g) | 77 |
| Body Length (no shaft) mm | 33.8 |
| Diameter (mm) | 28.5 |
| Shaft Length (mm) (Details pictures) | 14.5 |
| Shaft Dia. (mm) | A=4mm to 3.17 on pinion side |
| Mounting Holes CTC Distance (mm) | 16*4 |
| Mounting Screw | M3x0.5 |
| Max Eff. Curr. | 52.92 / 76.16 |
| Max Eff. | 84.13/ 84.77 |
| Kt (Nm/A | 0.0023 |
| Km (Nm/sqrt(w)) | 0.0190 |
| Max Continuous Power(Watts) | 580 |
| Peak Continuous Power(Watts) (2 sec) | not provided |
| Max Continuous Current(Amps) | 36 |
